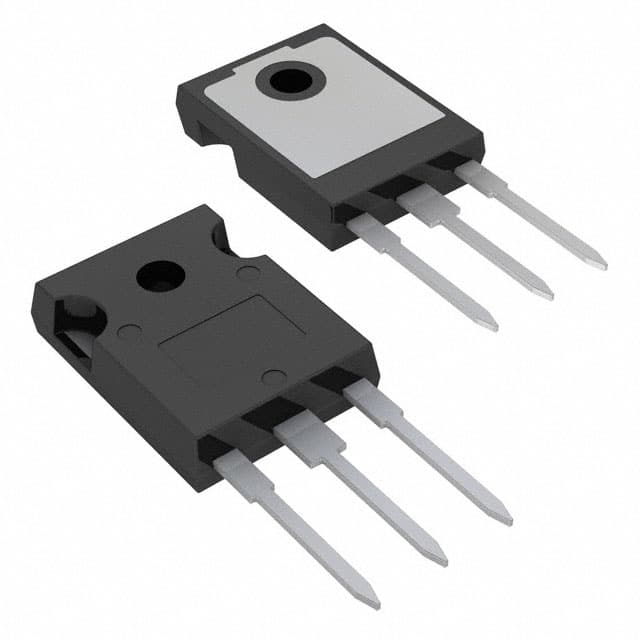

IRG4PH20K Transistor - A Powerful IGBT for High-Performance Applications As one of the most popular single IGBTs in the market, the IRG4PH20K is renowned for its outstanding performance and reliability. In this article, we will delve deeper into the features, applications, and manufacturing process of the IRG4PH20K transistor, and explore why it is favored by engineers and technicians worldwide. Overview of IRG4PH20K Transistor The IRG4PH20K is a powerful IGBT with a voltage rating of 1200V, current capacity of 11A, and a power dissipation of 60W. It comes with a TO247AC package, making it easy to install and use in diverse electronic devices. This high-performance transistor exhibits a low saturation voltage of 2.5V (max), which minimizes power loss and enhances efficiency. It also features a short-circuit withstand time of 5 μs (min), ensuring safe and reliable operation even under high stress conditions. Main Features and Performance Parameters The IRG4PH20K transistor boasts an array of impressive features that make it a valuable component in many electronic devices. It has a wide range of operating frequency from 1kHz to 10kHz, ensuring high-speed switching and efficient operation. This IGBT also possesses an insulated gate, which minimizes losses and allows for easy integration into high-performance applications. The junction temperature range of -55℃ to +175℃ guarantees the long-term stability of the device over an extensive range of environmental conditions. Additionally, the IRG4PH20K transistor provides exceptional accuracy and efficiency, making it the ideal choice for high-performance power applications. Application Scenarios and Usage The IRG4PH20K transistor is a versatile device that can be used in various electronic devices across a wide range of industries. Its primary application is in power electronic systems, such as motor drive applications, inverter circuits, and uninterruptible power supplies (UPS). It can also be used in traction circuits, rectifier circuits, and power factor correction (PFC) circuits in the aerospace, automotive, and telecommunications industries. The robust characteristics of the IRG4PH20K transistor make it a popular choice for a wide range of high-power, high-voltage applications. Types of Integrated Circuits Integrated circuits come in different types, including digital, analog, mixed-signal, and radiofrequency (RF). The IRG4PH20K transistor is an example of an analog device that is widely used in power conversion applications. It functions as a switch in various power circuits, converting direct current (DC) to alternating current (AC). This IGBT device enables the control of large currents with a low current input and is widely used across various industries. Production Process The production of the IRG4PH20K transistor involves several complex manufacturing processes, including chip design, cutting, cleaning, laser processing, and back grinding, doping, exposure, vapor deposition, etching, among others. During manufacturing, the device undergoes rigorous testing to ensure it meets the required industry standards and customer demands. The finished products undergo appropriate packaging and testing to enhance their component quality. Conclusion The IRG4PH20K transistor is a powerful IGBT widely popular in the electronic industry. Its high-performance parameters, magnificent features, and versatile applications make it a favorite with engineers and technicians worldwide. By improving different manufacturing processes, the device continues to impress and meet the industry's high standards and technological needs. The article has showcased the IRG4PH20K's features, applications, and production process, providing insight into the device's profile for people interested in the electronic industry.
